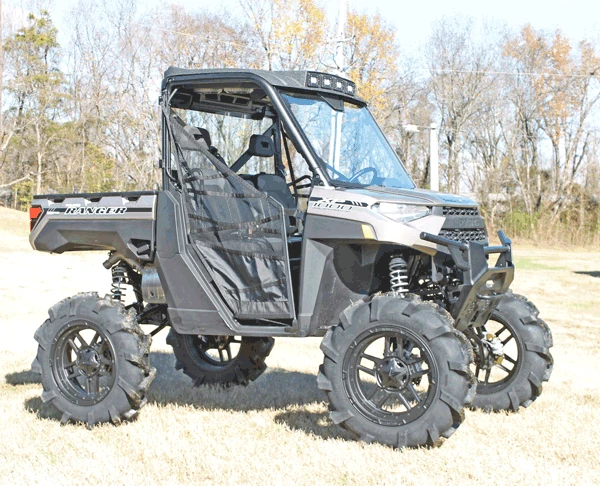

6” Big Lift Kit Polaris Ranger XP 1000 – Orange

Bigger. Badder. BOLDER. Take your ATV to the edge with High Lifter’s 6″ Big Lift Kit. Increase your ground clearance and make room for larger tires to dig deep and ride hard in most any terrain. Our engineers and staff have spent over 20 years perfecting the ultimate ATV lift kit. The product? The Big Lift Kit is even easier to install with a bolt-on application that consistently measures truer over competitor products.

One of the first areas our team tackled was the steering. Large lifts are known for being difficult to steer. Our solution was superior engineering of steering components and hub location geometry that that provides excellent steering and maneuverability on the trails.

The kit provides a true 6″+ of lift with the front Max Clearance Control Arms featuring a 2″ forward sweep for increased tire clearance and wheelbase. The rear Max Clearance Control Arms feature a 3″ rearward rake for increased tire clearance and wheelbase. Depending on your shock preload adjustment, additional life can be gained.

Each lift kit comes with four Outlaw DHT XL axles that are custom tuned for use with the 6” High Lifter Lift Kit.

Outlaw DHT XL Axle:

• Dual heat treatments on the housings to improve toughness against shock loads without compromising bearing surfaces and long term life
• Oversized CV joint housings to increase strength
• Housings and bars made from 4340 Chromoly steel
• Puncture-resistant boots which are durable in high and low temperature climates
• Molybdenum disulfide, anti-oxidation, rustproof, and high-performance

This 6″ lift kit package includes the following components:

• Heavy duty laser cut front and rear upper lift/shock relocation brackets
• Eight custom heavy duty Max Clearance Control Arms crafted from 1 1/4″x.120 wall DOM tubing, heavy duty support gussets, and shock mounts
• Four DHT XL Axles
• Custom tie rods with heim-style rod ends
• Custom rear brake line kit
• All required hardware
• Detailed instructions with step-by-step photos

Note: Kit only comes powder coated orange.
